SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery

Product Categories

Shijiazhuang Minerals Equipment Co. Ltd

Contact Now

SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery

Name: SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery
Brand: CNSME
Price: 1 USD

China SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery wholesale

Brand Name : CNSME

Model Number : 2/1.5B-

Certification : ISO/CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 30 Sets per Month

Delivery Time : 7 Working Days

Packaging Details : Plywood Crate

Material : High Chrome Alloy A05

Drive type : CV, DC(Z), ZV(Z), CR(Z)

Type : Horizontal

Principle : Centrifugal

Use : Deal Mining Tailings

Structure : Single casing

Contact Now

SH / 40B Metal Slurry Pumps Wear Reduction For Alumina Refinery

Introduction:

The frame plates for type 2/1.5B- such as interchangeable, hard metal only. Bearing assembly
Use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired. Bearing use grease lubrication. The shaft seal could use packing seal, centrifugal seal and mechanical seal. The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Specifications:

Model	SH/40B
Oulet	1.5-inch
Capacity	32.4-72m3/h
TDH	6-58m
Rated Motor Power	15Kw
Speed	1200-3200r/min
NPSH	3.5-8m

Construction of SH Slurry Pumps:

SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

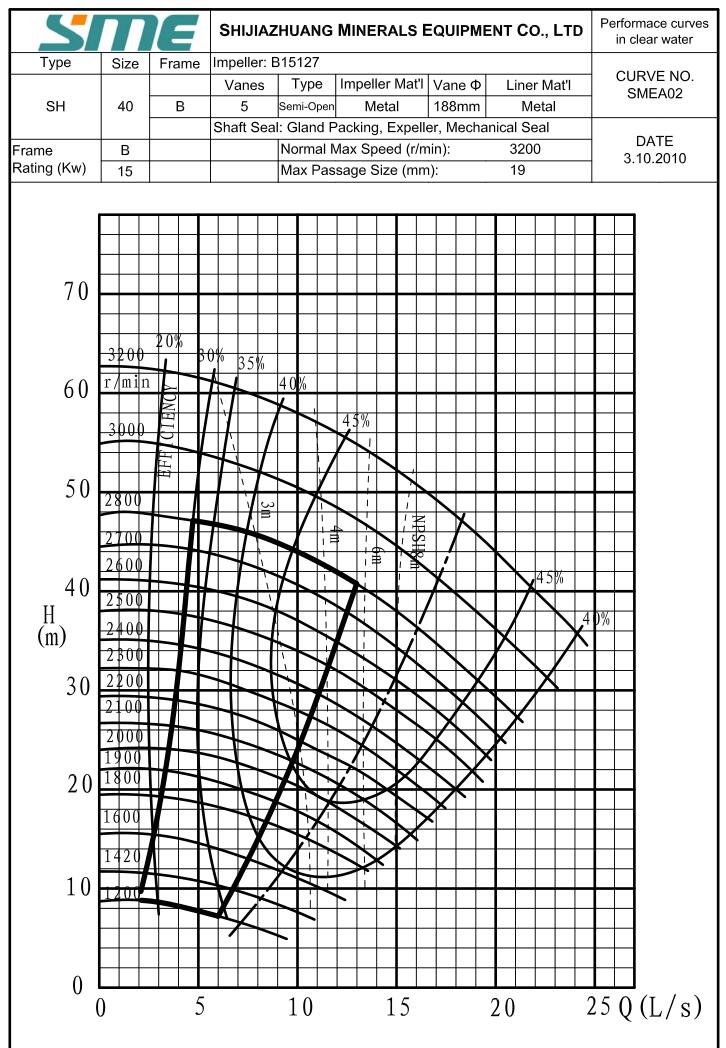

Performance Curve:

SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery

Product Tags:

high chrome slurry pump

heavy duty centrifugal pump

SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery Images
