Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G

Name: Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 108FG
Brand: CNSME
Price: 15000 USD

China Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G wholesale

Brand Name : CNSME

Model Number : SG/200F

Place of Origin : CHINA

MOQ : 1 set

Price : USD15000/pc

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 10-15 workdays

Packaging Details : Wooden crate

Model NO. : SG/200F

Voltage : 380V-480V

Flowrate : 216-1200m3/h

Head : 8-66m

Speed : 300-1100rpm

Efficiency : Max 65%

Impeller : 3 Vanes Closed Type

Power : 260kW

Application : Food and Beverage Industry, Marine, Mining industry, sand plant

Warranty : 1 Year Warranty(except Wearing Parts)

Maximum Particle : 178mm

Contact Now

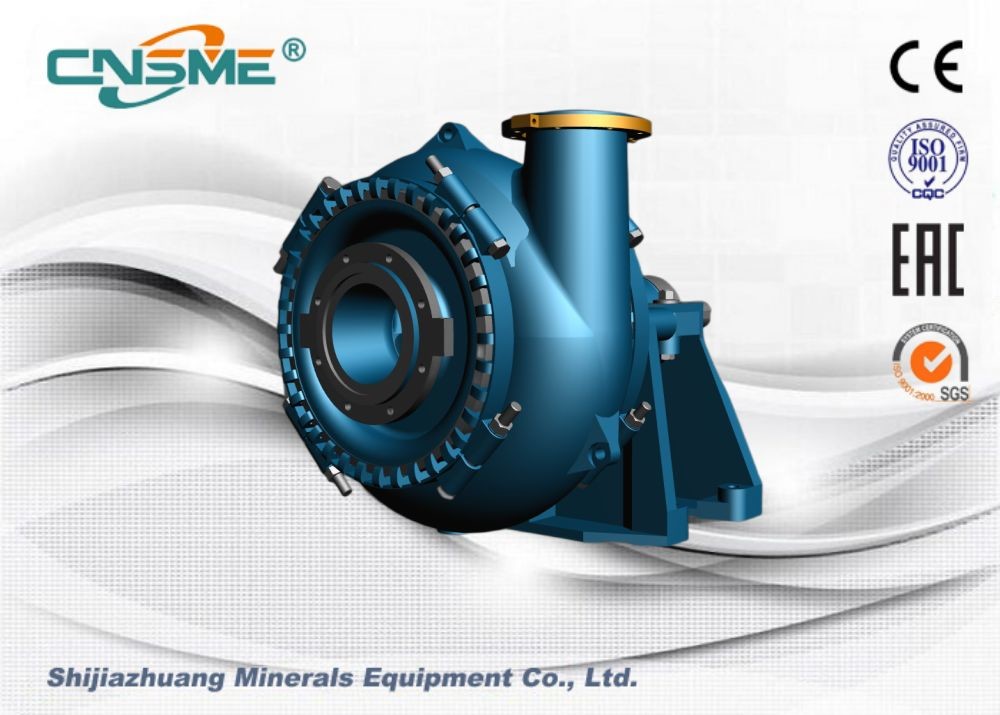

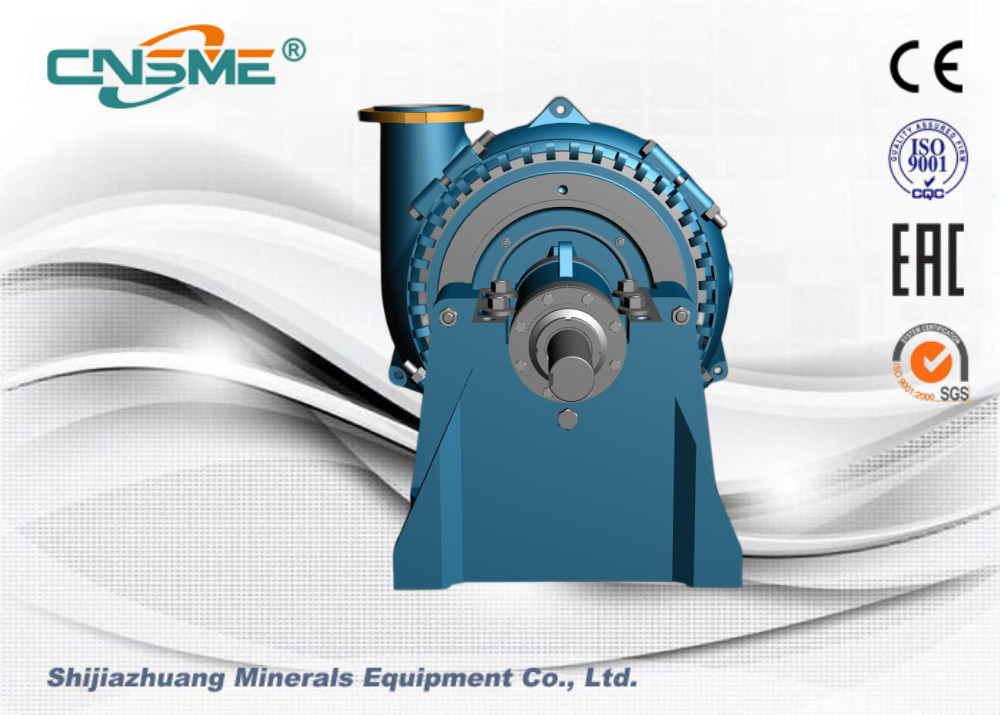

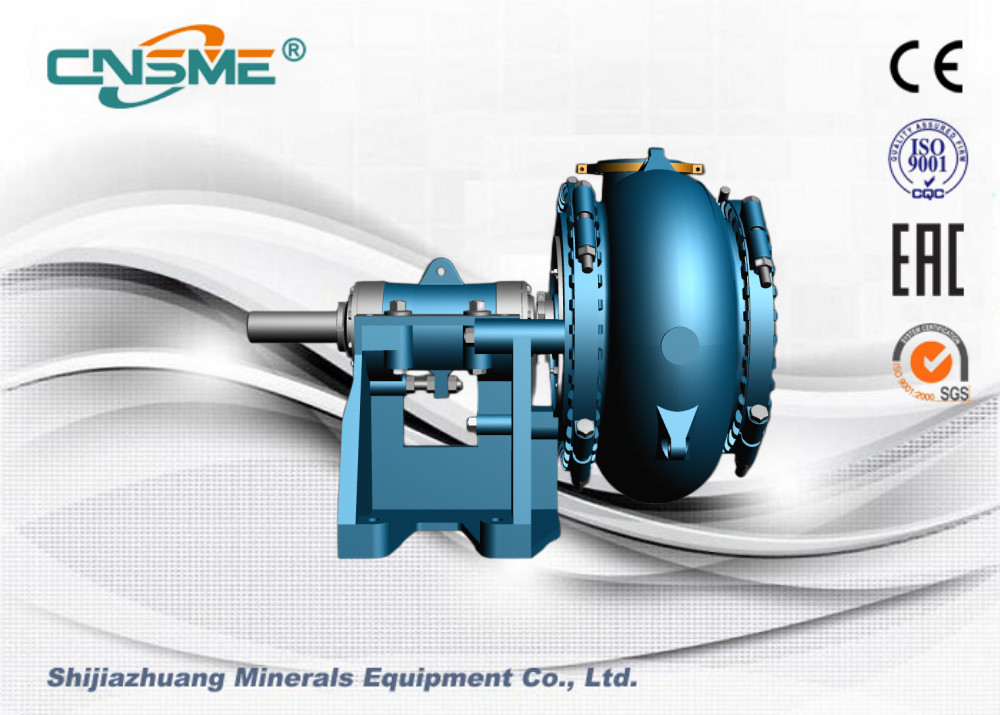

CNSME 10/8F-G Gravel Sand Slurry Pump and Interchangeable Spare Parts Manufacturer

10/8F-G Gravel Pump is the world’s standard for dredge and gravel applications. The range provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. A wide variety of shaft seals provide a perfect fit for a wide range of applications. Pass very large solids not capable of being pumped by series slurry pumps.

Design Features:

• G gravel pump uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate.
• G gravel pump has wide runner, good anti-clogging performance, and excellent cavitation performance.
• G gravel pump uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak.
• The reliability design greatly improves mean time between failures (MTBF) of complete machine.
• G gravel pump uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the bearing operates at low temperature.
• Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special processing, they are used for seawater dusting, and seawater and salt mist electric chemical corrosion conditions.
• In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.

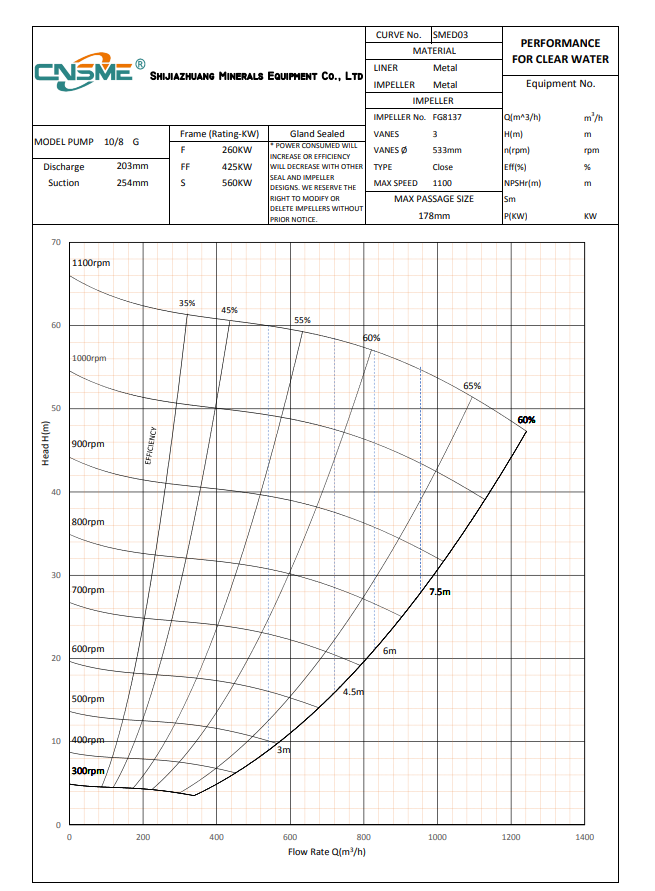

Outlet Dia.(mm)	200
Inlet Dia.(mm)	250
Head(m)	8-52
Flow(m3/h)	216-936
Pumping case	Cast Iron
Shaft	40Cr
Shaft seal	Packing seal, Expeller seal, mechanical seal
Wet ends	Cr26

Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G

Applications

Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying
Metallurgy:Transport various slurry for aluminium or steel manufacture
Coal: Coal mining, washing and various coarse and fine coal slurry transportation
Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation
Construction materials:Various mud sand slurry(such as Cement slurry) transportation
Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation
Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation
